PHOTON COUNTING

Dark Box

Fully light tight box enabling a controlled experimental environment

Features

arrow-right-active-icon

Fully light tight dark box

Easy close door with labyrinth seal

Adjustable height sample holder

Sample plate lighting (optional)

Temperature controlled sample stage (optional)

Location templates for MTP and petri-dishes

Compatible with all Photek camera systems

Product Overview

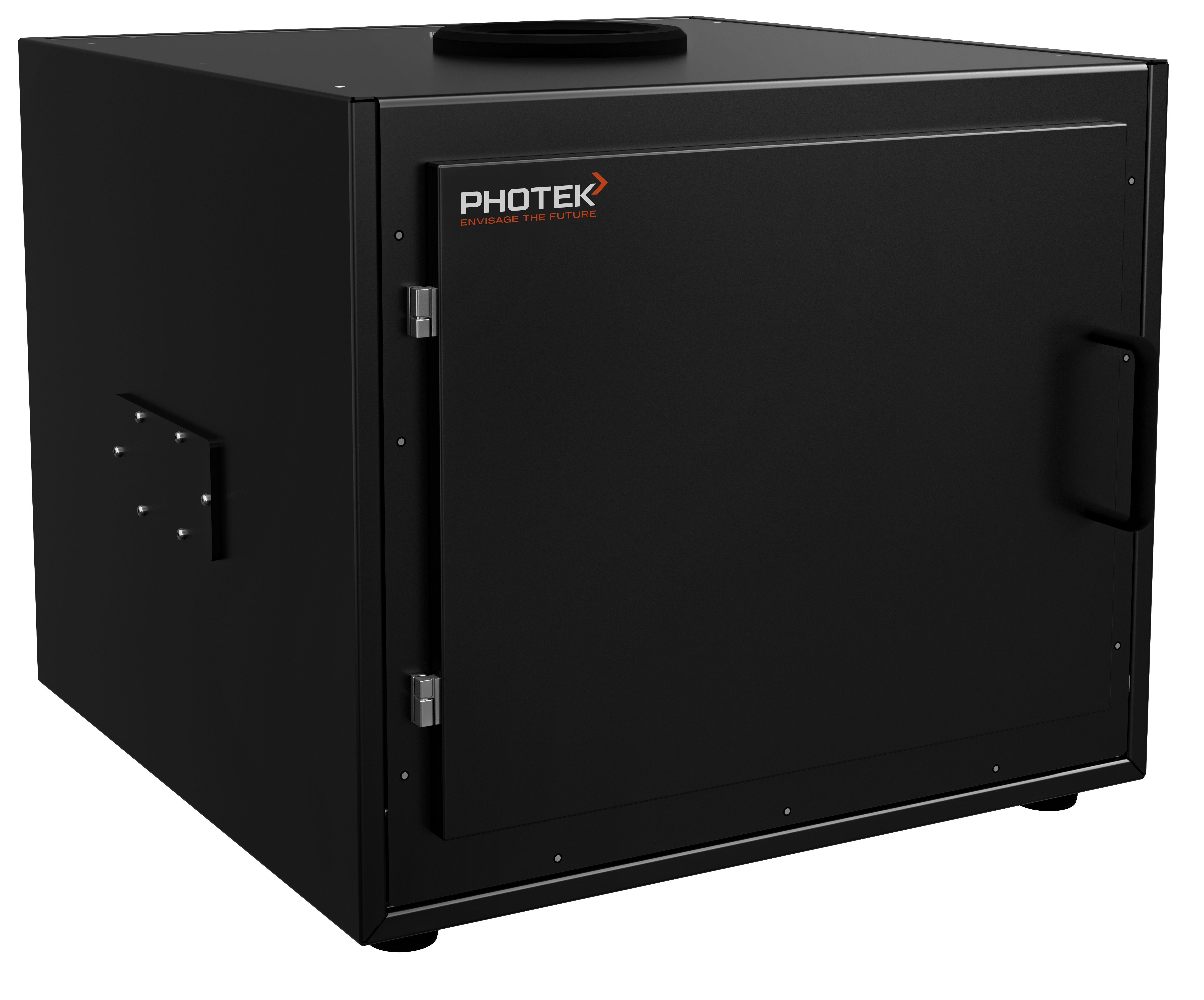

The DB3 Dark Box is designed for use with Photek’s 25 mm and 40 mm photon counting cameras, but can be adapted to use with any Photek detector. It is fully light tight and suitable for imaging very low light level samples. The dark box is supplied with a height adjustable stage which allows easy focusing of the sample.

One or more LB3 Digital Light Boxes can be fitted into the dark box to provide a multi-wavelength uniform light source for focusing and bright field image acquisition. The optional TCS2 cooled and heated sample stage provides the ability to control sample temperature between –20°C and +50°C.
