Single photon counting providing simultaneous position and timing data
Based on a true single photon counting sensor that uniquely provides simultaneous position and timing information for each detected photon, the IPD6 is perfect for continuous imaging of processes with very low light levels over wide fields. Highly customisable it offers multiple options of image plane formats, high sensitivity photocathodes and accessories that can be combined into complete turn-key systems.
for ultra-low light sensitivity
providing (x, y, t) for each photon with resolution of 100 µm and 10 ns
to match your needs
provides plug-and-play operation
Wide Field Time Correlated Single Photon Counting
Bioluminescence Imaging of Luciferase and Aequorin
Chemiluminescence Imaging
ATP-Bioluminescence Studies
Time resolved spectroscopy
Fluorescence Lifetime Imaging
Microtitre plate readers
LiDAR
Autoradiography
Astronomy
Missile Warning
Camera | ||||
Readout Mode | Real time image integration and X, Y, T list | |||
Integration time | Unlimited | |||
Input Window | Fused Silica (Fibre Optic optional) | |||
Photocathode | SB, Bi, S20, S25 | |||
High Voltage | Integrated | |||
Interface | USB 3.0 |
Resolution | IPD318 | IPD325 | IPD340 | |
Input Diameter | 18 mm | 25 mm | 40 mm | |
Typical Image Format (software scalable to 2k x 2k) | 512 x 512 | 512 x 512 | 512 x 512 | |
Pixel Size at Image Plane | 35 μm | 50 μm | 80 μm | |
Limiting Resolution | 18 lp/mm | 15 lp/mm | 12 lp/mm |
Timing | ||||
Maximum Count | Rate 300,000 cps | |||
Recommended Count Rate | < 100,000 cps | |||
Local Count Rate (1 mm2) | 50,000 cps | |||
Event Deadtime | 1.3 µs |
Figure 1: QU Curves

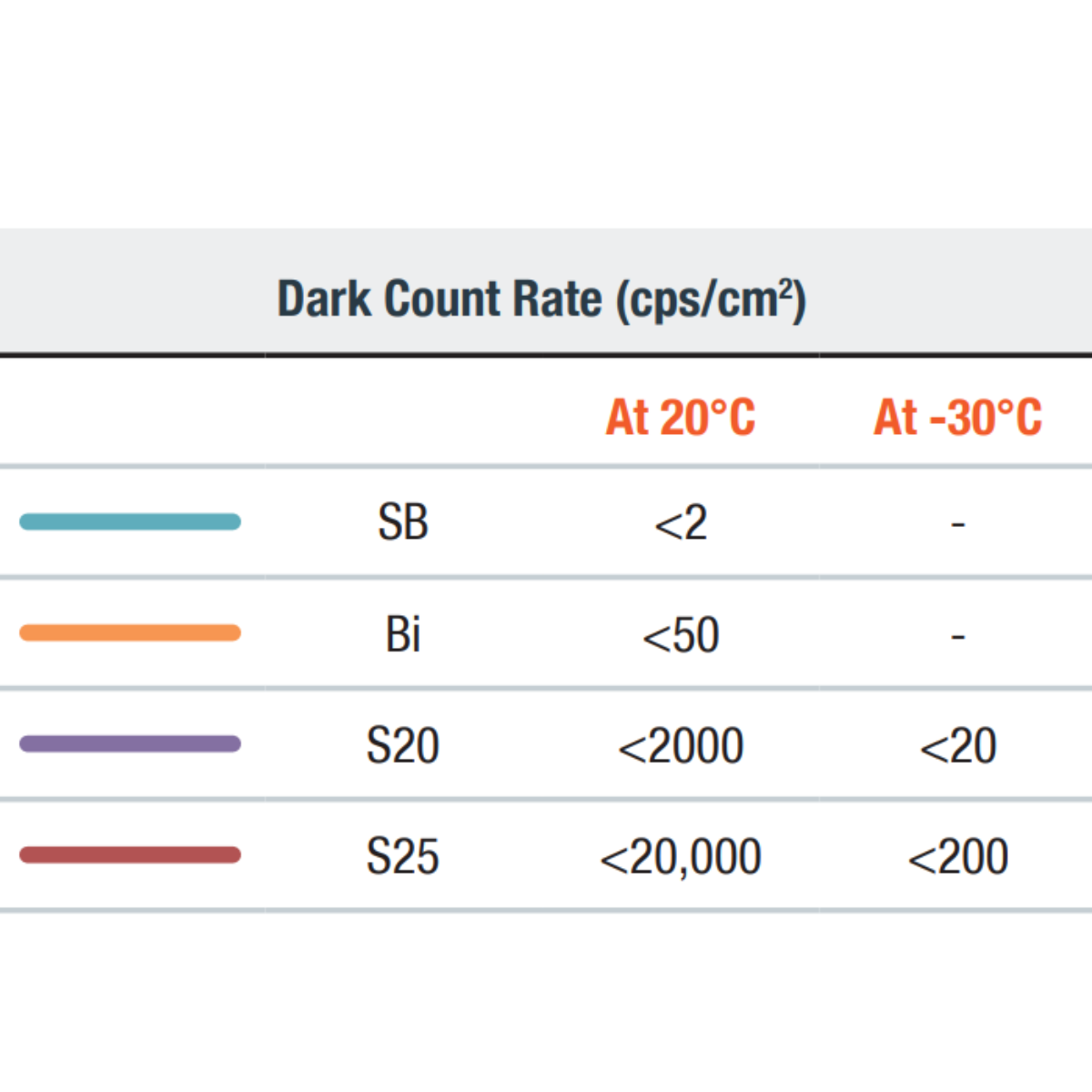

Figure 2: Dark Count Rate
