Ultra fast, spatially segmented microchannel plate photomultiplier tube
AuraTek™ Round is a Micro-Channel Plate based Multi-Anode Photomultiplier Tube offering excellent single photon transit time spread of <40 ps FWHM, high density adaptable anode formats, and optional integrated readout electronics.
provides up to 1024 anodes on 0.828 mm pitch
option makes 16 x 16 Anode configuration easy to use
to optimize the performance of your application
for precision Time Correlated Single Photon Counting
for demanding, low light applications
Wide Field Time Correlated Single Photon Counting
High Content Screening
Time Resolved Spectroscopy
Fluorescence Lifetime Imaging Microscopy (FLIM)
Forster Resonance Energy Transfer (FRET)
LiDAR
Wavelength Shifting Fibre Readout
Standoff Chemical/Biological Detection
General Characteristics | |
Window | Fused Silica (Optical Fibre Optic/Sapphire/MgF2) |
Active Area | 26.5 x 26.5 mm |
Eelectron Multiplier | Dual MCP |
Anode Formats | 32 x 32 (Reconfigurable) |
Anode Pitch | 0.828 mm |

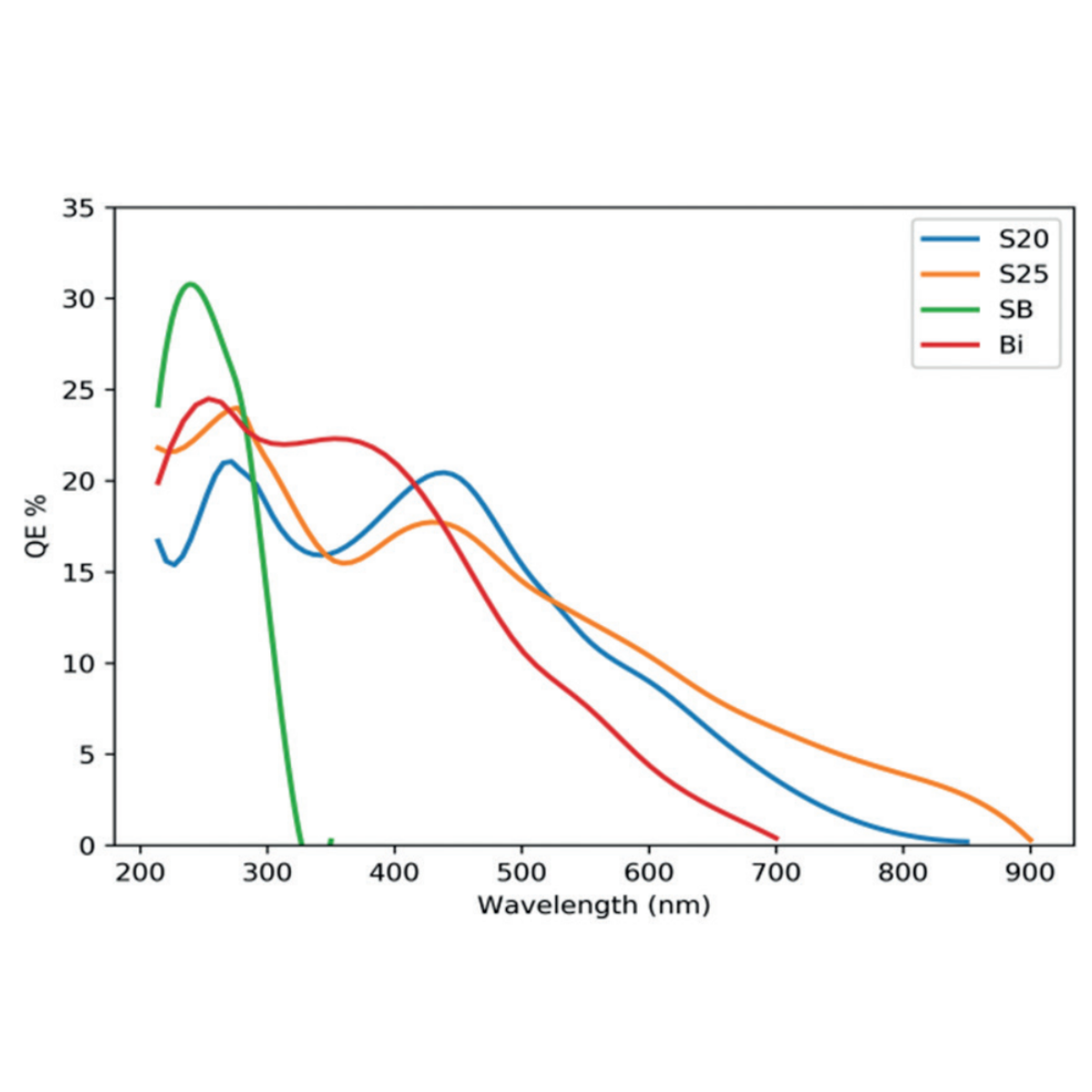

Photocathode | Solar Blind, Bi-Alkali, S20, S25, CsI |
Ask our technical team for assistance determining the best anode configuration and to discuss readout options.

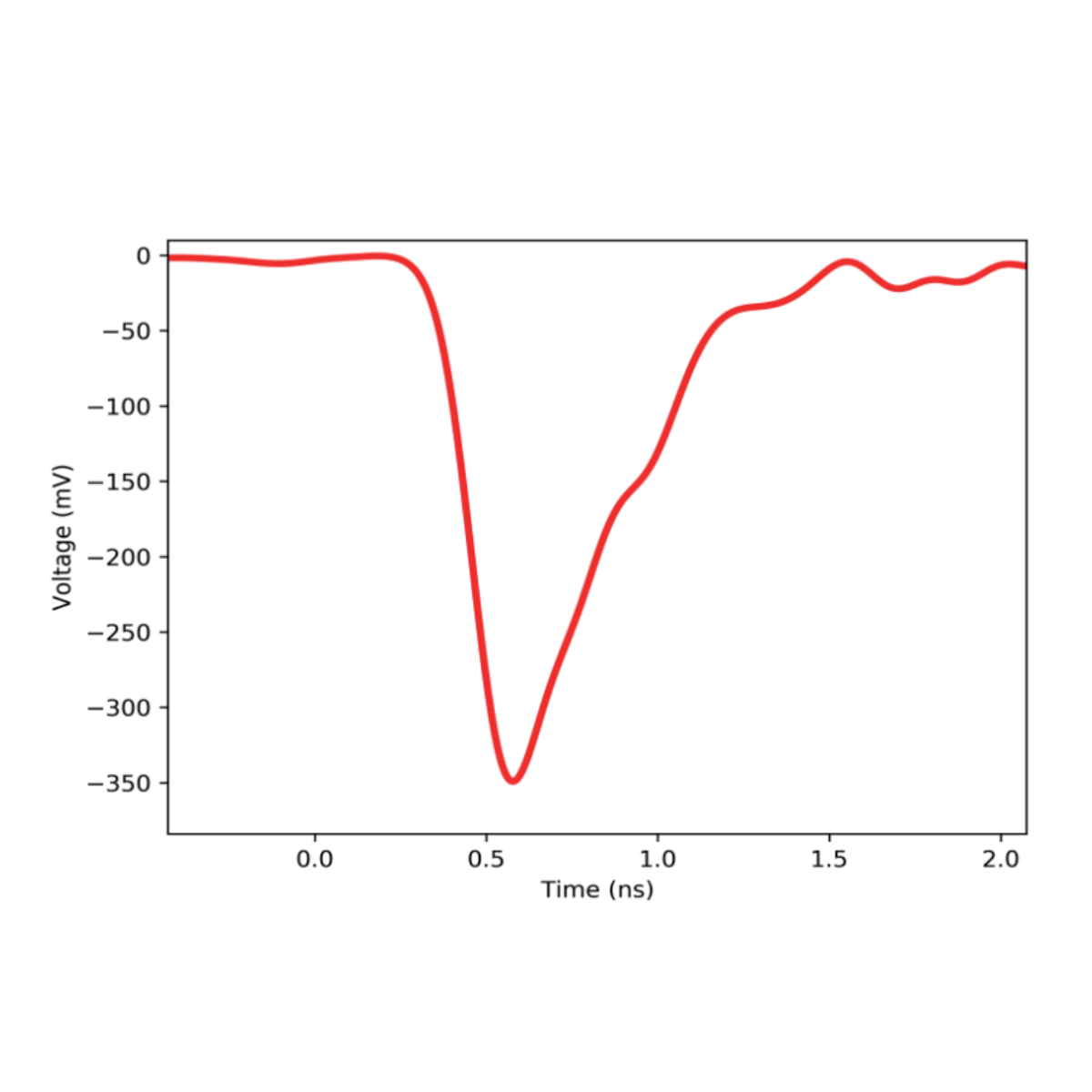

Single Photon Response | Typical |
Dark Counts per Anode | <2.25 ope |
Pulse Risetime (10% to 90%) | <1.75 pe |
Pulse Width | <430 pe FWHM |
Transit Time Spread | <40 ps RMS |
Pulse Height Distribution | 100% FWHM |
Maximum Ratings | |
Overall Voltage | < 3500 V |
Operating Temperature | -50°C to + 50°C |
Storage Temperature | -50°C to + 50°C |
Available photocathodes on fused silliCa window. Optical fibre optic window will reduce sensitivity and no response below 300nm
Average of 50 single photon pulses
measured on 5 GHz, 20 GS/s LeCroy oscilloscope,
using sin(x)/x interpolation and illuminated using a
Photek LPG-405 pulsed laser.
