PHOTOMULTIPLIER TUBES (PMTs)

Multi-Anode

Ultra-fast, spatially segmented photomultiplier tube

Features

arrow-right-active-icon

Single photon counting

with individual anode timing to < 30 ps rms

arrow-right-active-icon

Ultrafast analog response

to accurately measure picosecond scale transient events

arrow-right-active-icon

Extremely low dark counts

for enhanced signal-to-noise

Highest anode density of any PMT

for better spatial resolution

Coated MCP options

for long lifetime in high event rate environments

Immunity to magnetic fields

for operation in accelerator facilities

Applications

Overview

The Photek family of Multi-Anode PhotoMultipler Tubes (MAPMT) utilise Microchannel Plate (MCP) electron multipliers to provide the world’s fastest MAPMTs, with individual pulse risetimes to 175 ps and Transit Time Spread (TTS) to 30 ps rms.



There are multiple configurations to choose from, depending on requirements:

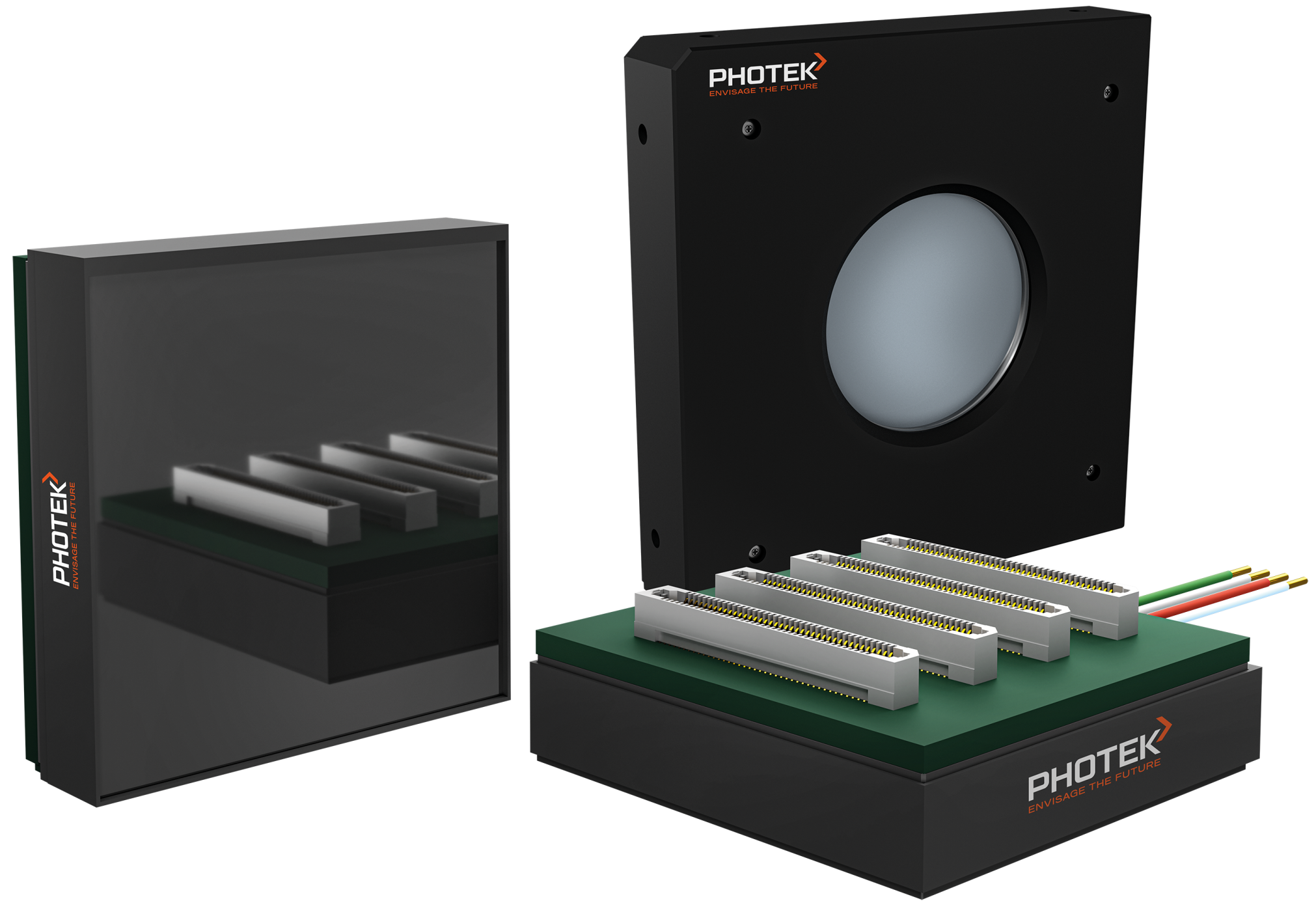

MAPMT253

A 59 mm tileable square format, with a 53 x 53 mm active area, with standard configurations of 64, 256, and 1024 anodes.

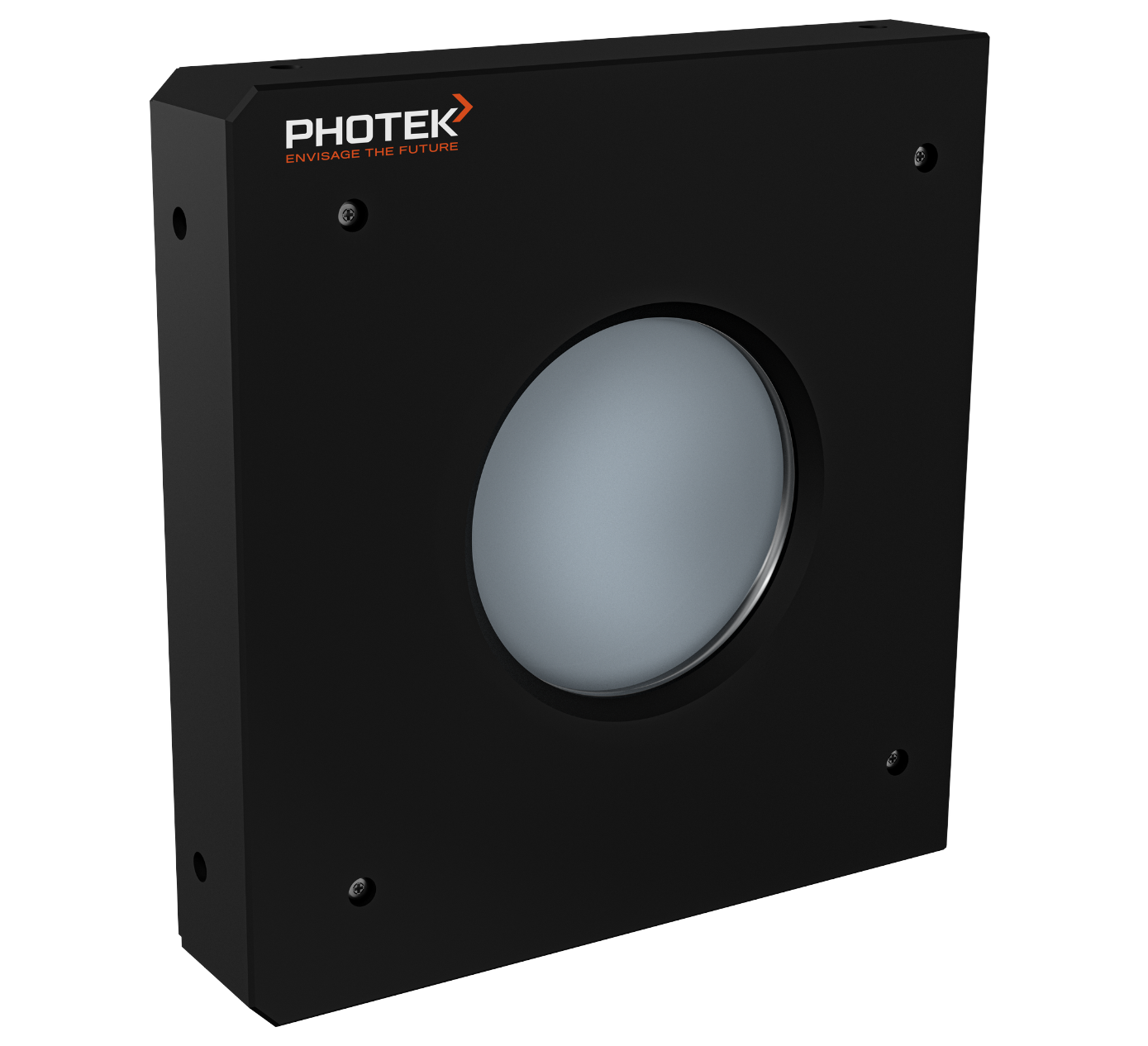

MAPMT226

A ruggedised 80 mm package with a 26.5 x 26.5 mm active area having 256 anodes.



Both variants can be customised with unique anode patterns and connectors.

Range

TYPE

Size

Input

Cathode

Anode

MAPMT2

26

Q (Fused Silica)

BI (Bialkali)

8 x 8

53

(Sapphire)

S20

16 x 16

*F (Fibre Optic)

S20B

32 x 32

*M (MgF2)

S25

*SB

*F, *M and *SB only available on the 26 mm model

Specifications

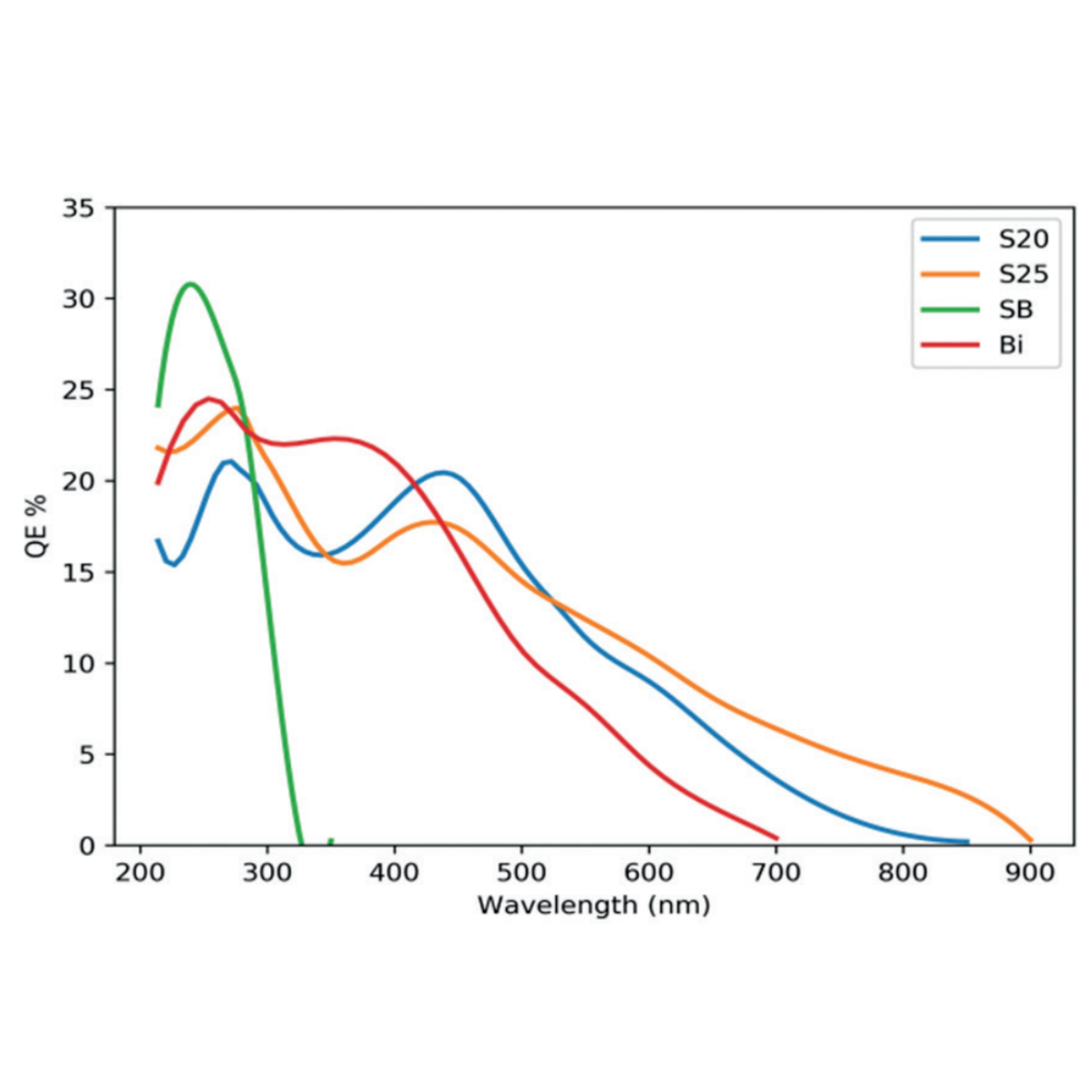

Photocathodes Response

Available photocathodes on fused Silica window.

Optical fibre optic window will reduce sensitivity and no response below 300nm

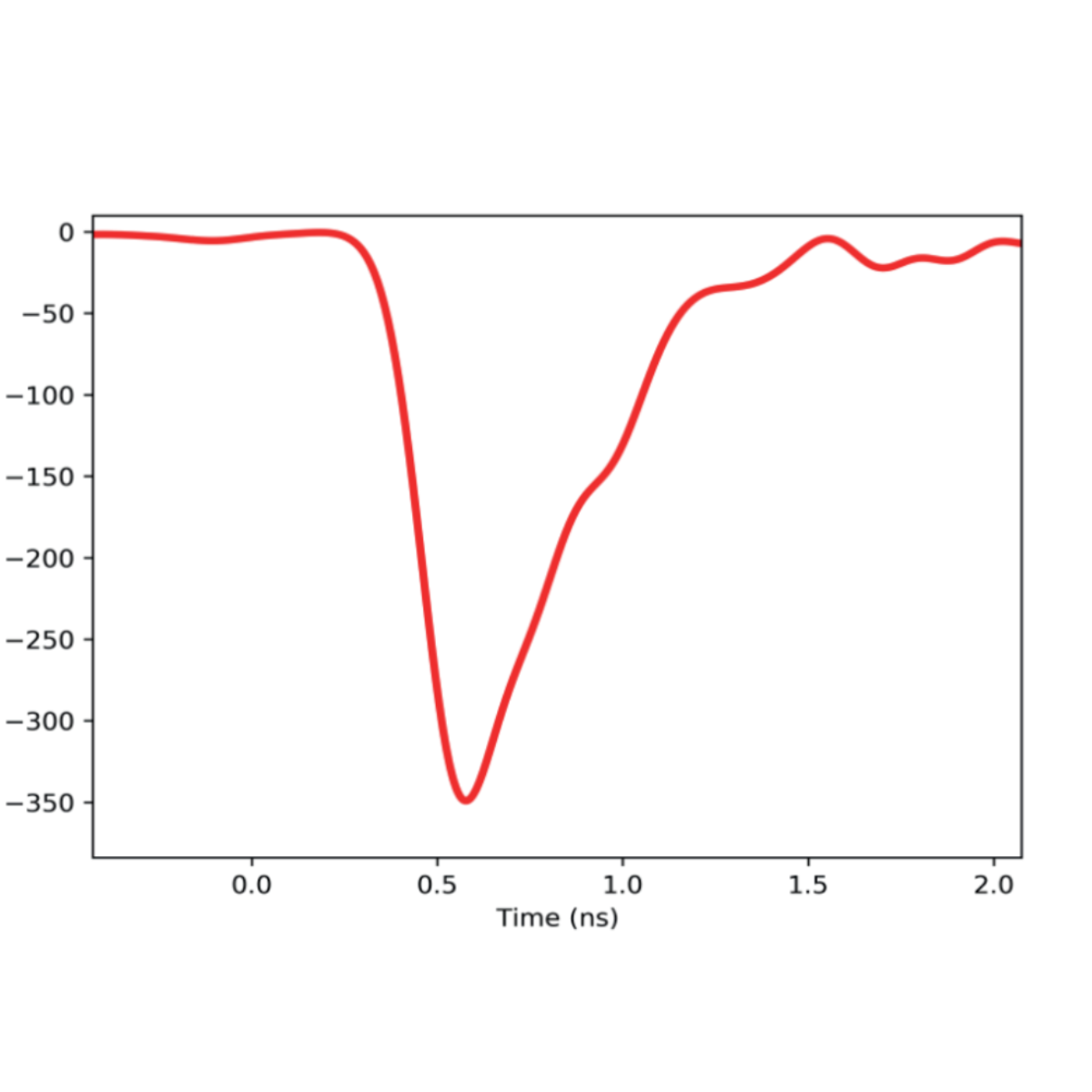

Average Single Photon Pulse

Average of 50 single photon pulses
measured on 5 GHz, 20 GS/s LeCroy oscilloscope,
using sin(x)/x interpolation and illuminated using a
Photek LPG-405 pulsed laser.
