Features
Larger field of view
fewer radiographs required for larger samples
Precise and fully integrated gating control
accurately capture fast events while reducing unwanted background noise
High sensitivity and high spatial resolution
identify smaller features and subtler substrate variations with high signal-to-noise and faster integration times
Easy-to-use software
produce more radiographs quickly
Applications
Neutron radiography
Computed tomography
Dynamic imaging
Energy specific imaging
Stroboscopic imaging
Product Overview

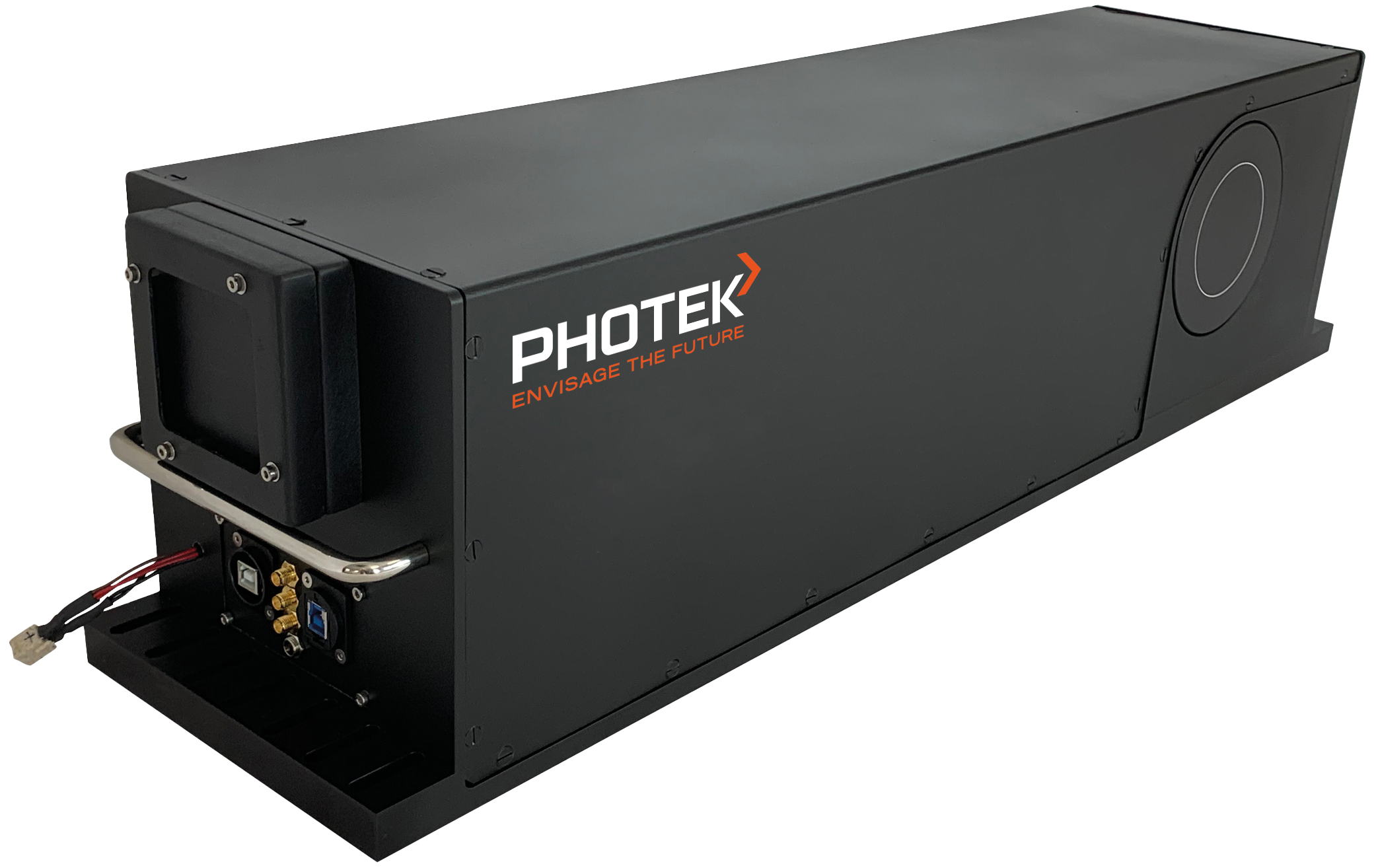

N-Cam is a novel intensified neutron camera system with the Gadox layer directly applied to the image intensifier. This provides greater sensitivity and excellent spatial resolution simultaneously, producing faster integration times and outstanding signal-to-noise. N-Cam can be gated down to 50ns providing precise gating for time of flight energy specific imaging.
The standard N-Cam comes with a 4.2 Megapixel cooled sCMOS camera and a 75mm diameter field of view capable of high speed or energy-specific radiography with >10 lp/mm resolution.
Contact us to discuss bespoke solutions.
Specifications
Effective Resolution | > 10 lp/mm | |||
Detective QE | > 16% | |||
Scintillator | Gd2O2S:Tb (Gadox) (Optional: Gd202S:Pr) | |||
Thickness | 20 µm | |||
Field of View | 75 mm | |||
Gate Control | Internal or external trigger | |||
Gate Width | 100 ns to DC on | |||
Format | 2048 x 2048 | |||
Effective Pixel Size | 38 µm | |||
Frame Rate | 35 fps at full resolution | |||
Command & Data | USB 3.0 | |||
Gate Trigger | SMA | |||

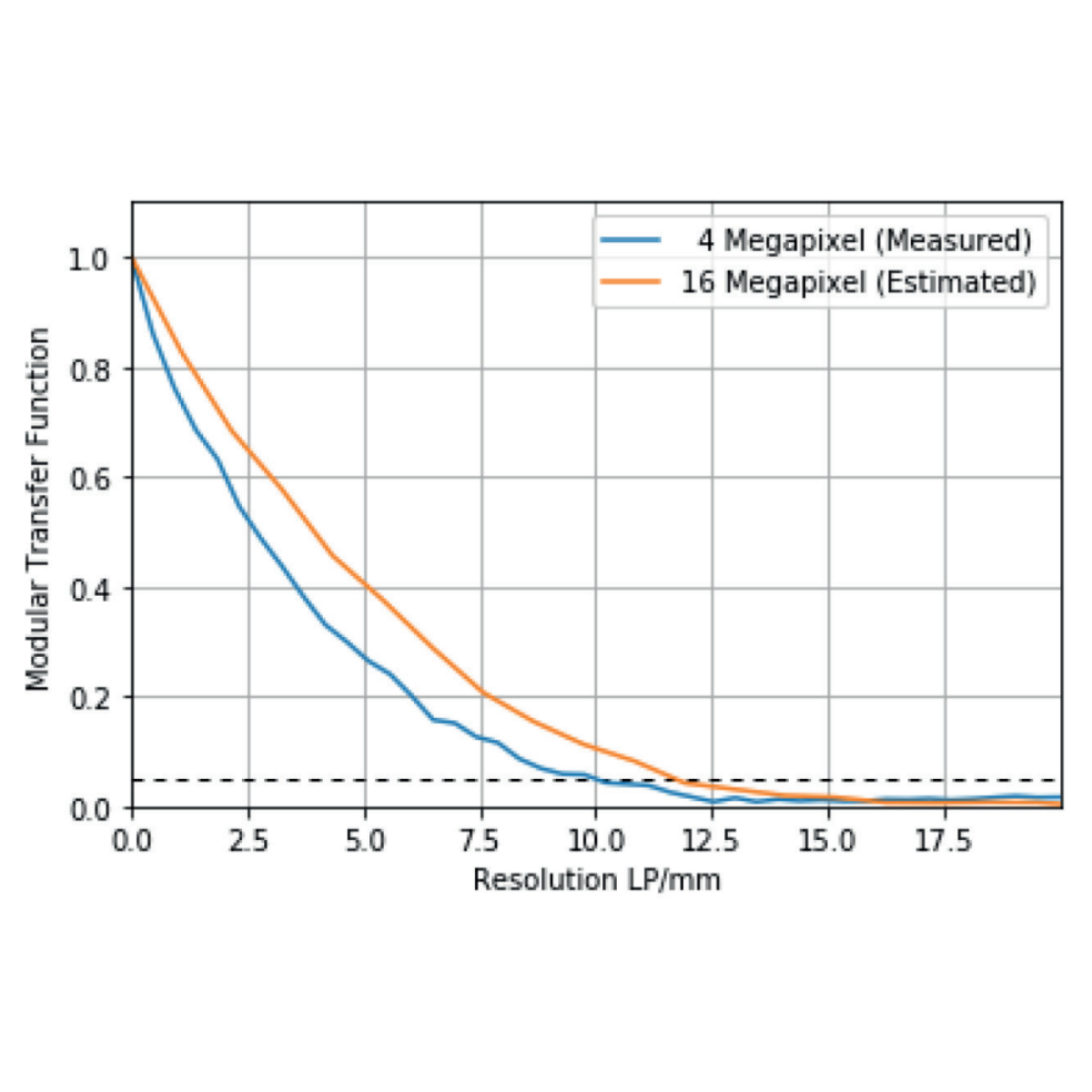

Spatial Resolution

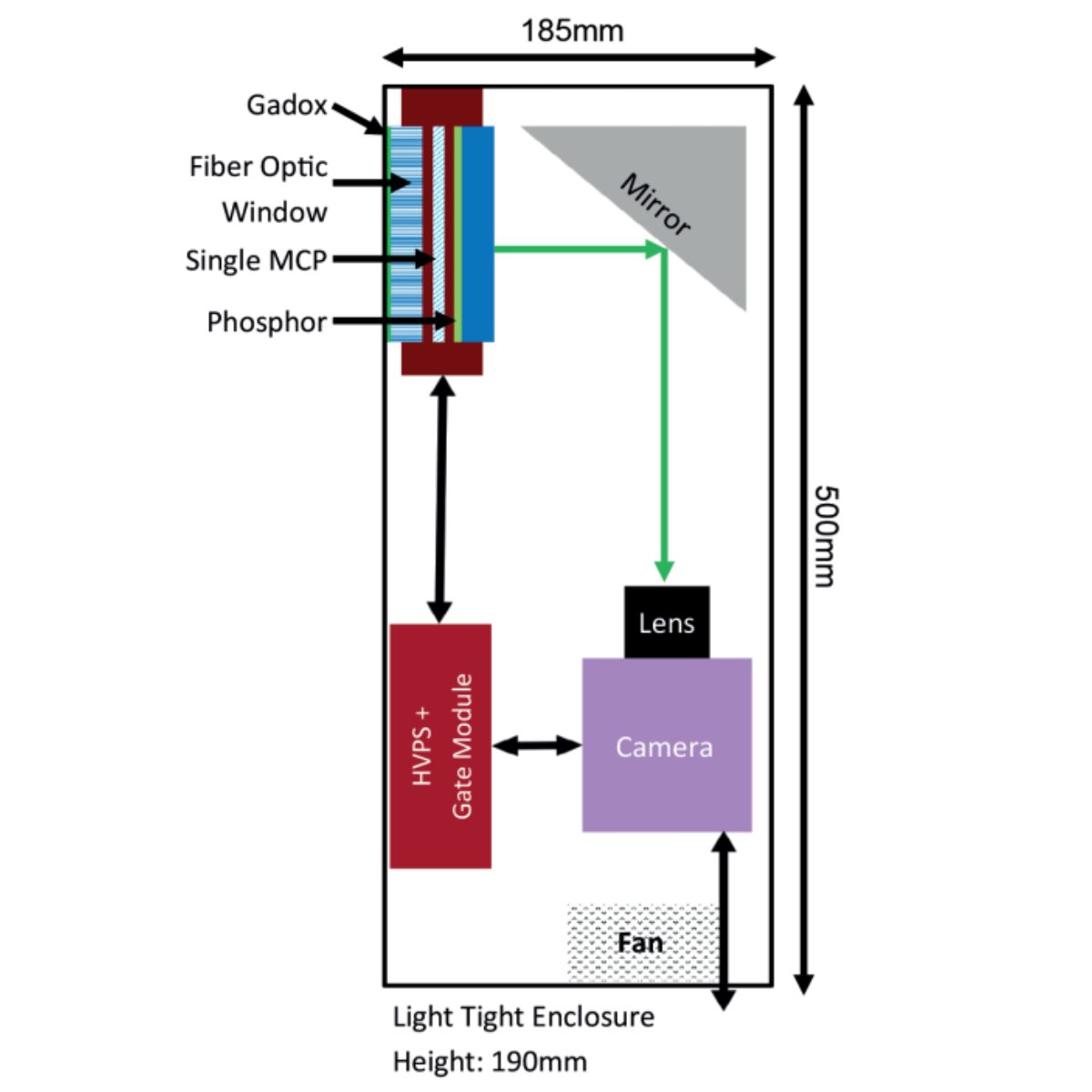

Camera design layout
