Features
Temperature control and monitoring
of the thermal load
Safety interlock temperature monitor
for the heat exchanger
Manual temperature monitoring and control
(stand-alone mode)
Computer interface
for temperature monitoring and control
Precise temperature measurements
in Degrees Centigrade to 1 decimal place
Heating and cooling of samples
over a wide range of temperatures
Product Overview
The Photek Sample Temperature Control stage provides a stable thermal environment for a variety of experimental samples. It will typically be used inside the DB3 Dark Box, viewed with one of Photek’s intensified cameras or photodetectors.
The Temperature Controller is specifically designed to control the stage and its sample between -20°C to +50°C. Set-up is as easy as connecting the stage to either a water supply or re-circulator and the Temperature Controller.
The Temperature Controller can be controlled using either a simple to use computer interface or its intuitive front-panel controls. Both the temperature controlled stage and the heat exchanger temperatures are monitored, providing a safety interlock to prevent damage. Custom configurations are available on request.
The cooling system comes with all required cables, water hoses and software drivers for quick and easy set-up.
Specifications
Cooling Limits | -20ºC to +50ºC |
Typical Cooling Performance | -10ºC |
Peltier Power Output | 48 V @ 2.5 A |
Width x Depth x Height | 260 x 280 x 115 mm |
Weight | 3.1 kg |
Supply Voltage | 90 V – 260 V 50/60 Hz |
Cooled Area | 138 mm x 165 mm |
Water Supply Maximum Input Pressure Minimum Flow Rate Minimum Head Required Water Temperature | 3 x 105 Pa 2 L/min 2 m ~ 15ºC |
Width x Depth x Height | 300 x 320 x 45 mm |
Weight | 5 kg |

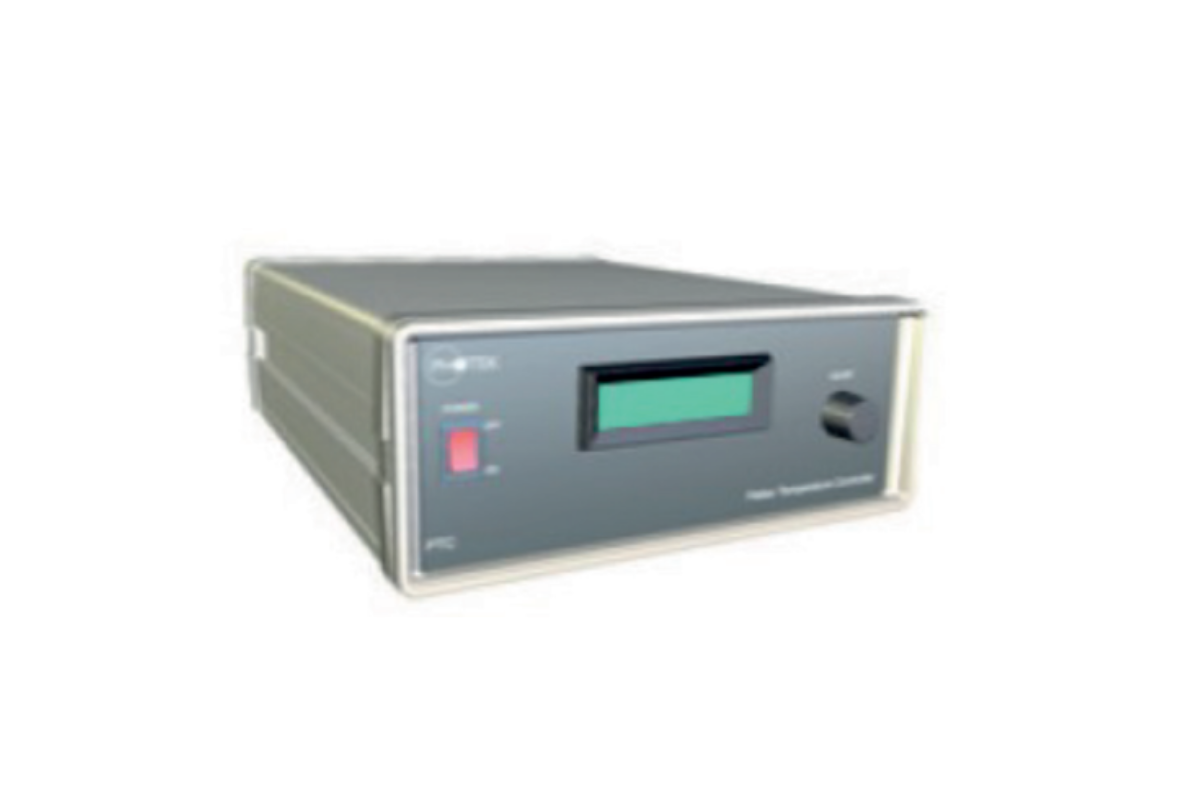

Temperature Controller

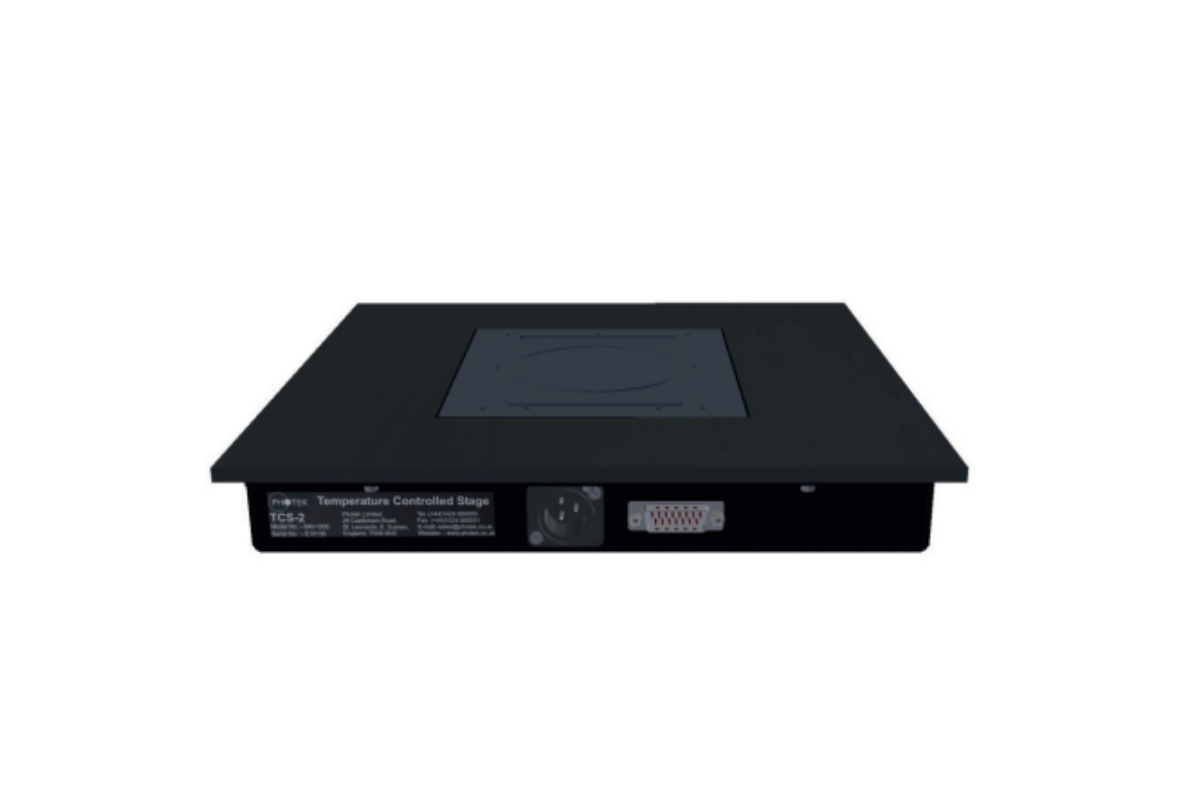

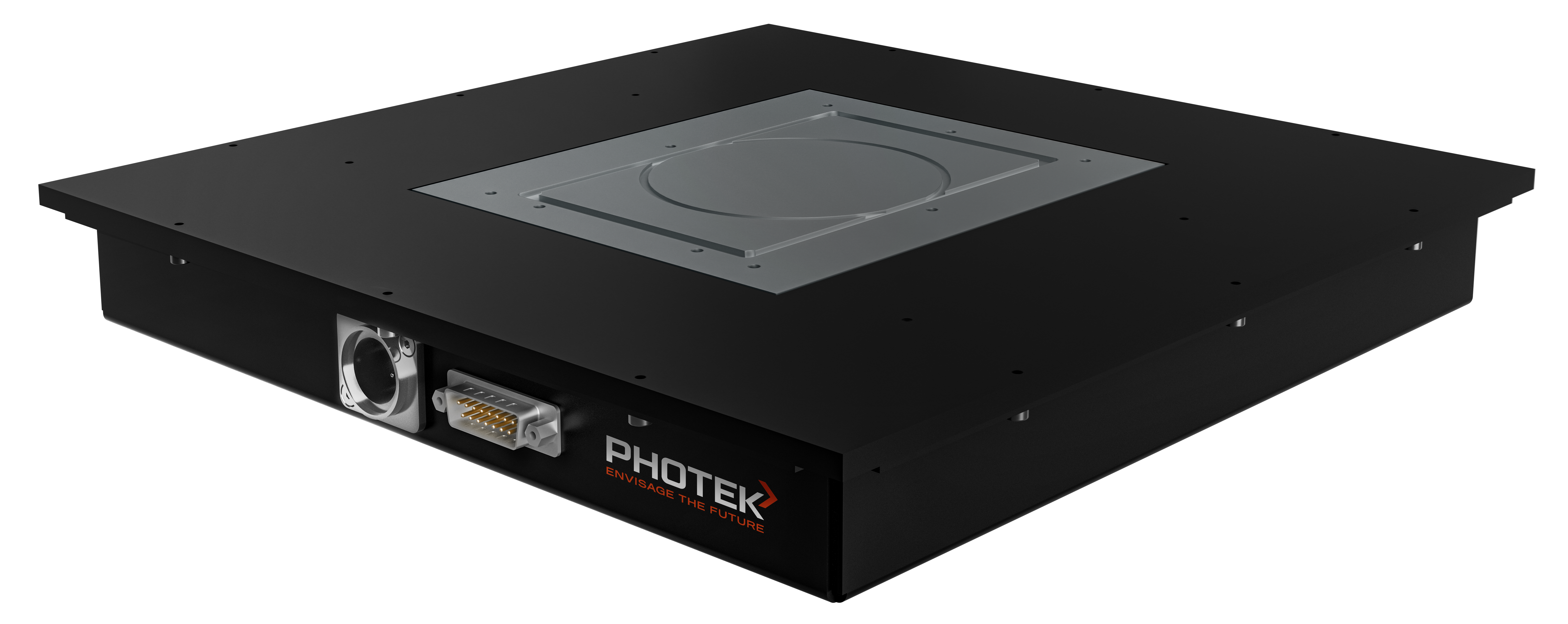

Sample Temperature Controlled Stage
