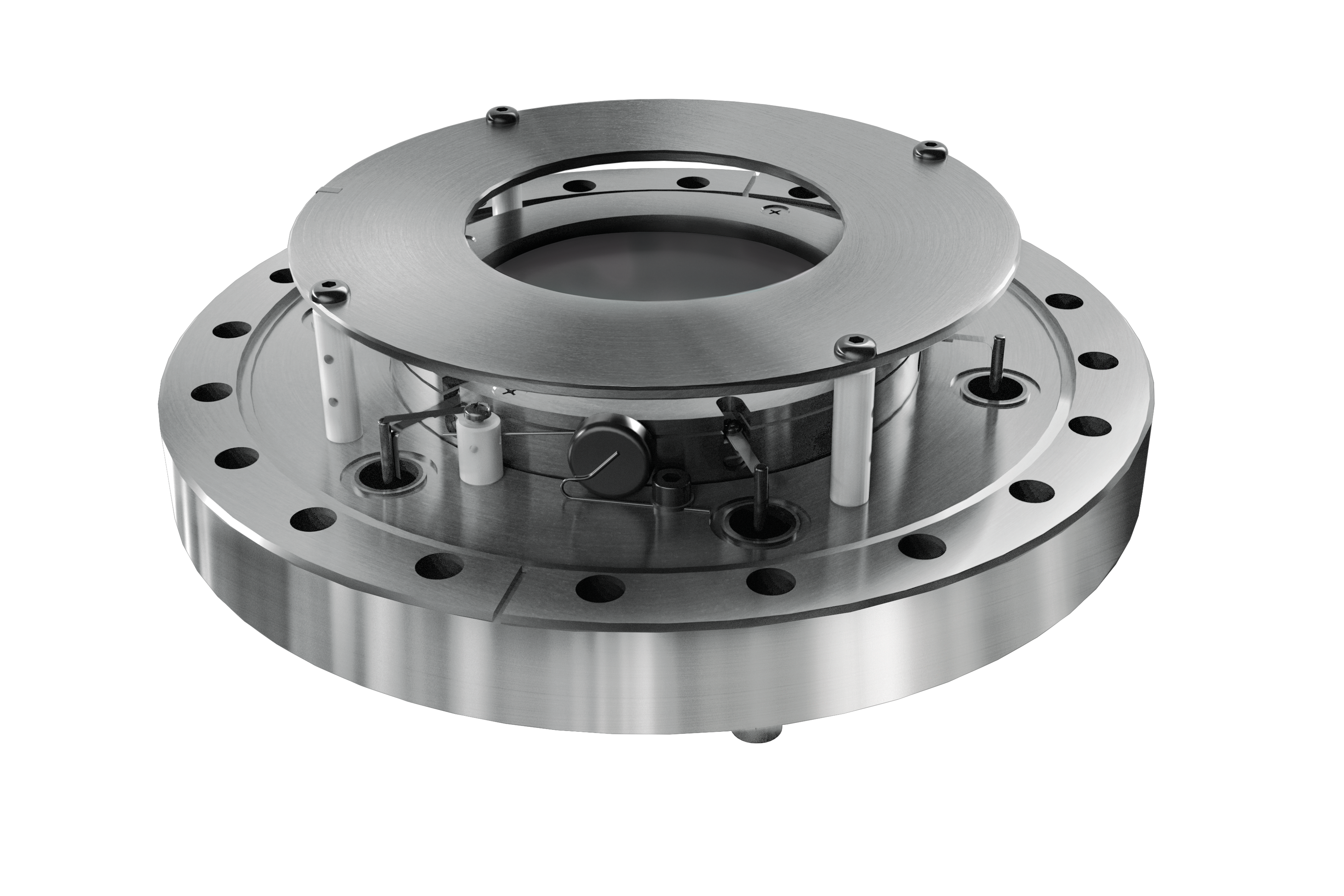

Features
Custom
CAD designed for each application
High temporal resolution
Fast MCP gating options
down to 8 ns
Range of coating options
to enhance Quantum Efficiency
Range of Phosphors available
Resistive sea Anodes available
as an alternative to a phosphor screen
Range of Sizes
18, 25, 40 and 75 mm active diameter
Wide choice
of flange size and type, or unmounted
Time-of-Flight Option
with phosphor screen providing 5 ns FWHM timing
Applications
Synchrotron Radiation
VUV imaging
Product Range
TYPE | # of MCPs | Size | Phosphor | Output |
VID | 1 | 10 | P43 | G (Glass) |
2 | 18 | P46 | IFO (Fibre Optic) | |
3 | 25 | P47 | ITA (Fibre Taper) | |
40 | (Others upon request) | RS (Resistive Sea Anode) | ||
75 |
Specifications
Type (Colour) | Screen efficiency % (Optical Watts / Electrical Watt) | Peak | Photons / Electron @ 5 kV | Decay Characteristic | Decay Curve |
P11 (Blue) | 5.9 | 446 | 120 | Fast initial decay with long decay at low level. | |
P20 (Green) Fast | 12 | 540 | 320 | Fast initial decay with long decay at low level. | |
P24 (Blue) | 5.0 | 500 | 120 | 10 ms to 10% | |
P31 (Green) | – | 550 | – | 1 ms, good exponential | |
P43 (Green) | 8.7 | 548 | 240 | 1.2 ms/decade, true exponential | |
P46 (Green) | 1.8 | 530 | 55 | 300 ns | |
P47 (Blue) | 3 | 410 | 64 | 80 ns | |
FS | 4.2 | 513 668 768 | 96 | 12 us to 10 % | |
GOS | 0.7 | 420 | – | 50 ns to 10 % | 110 ns to 1 % |
Range Size | Detectors | ||||||||
Nominal OO / ID | VID-12 | VID-18 | VID-25 | VID-40 | VID-75 | VPM-6 | VPM-12 | VPM-25 | VPM-40 |
CF36 70mm / 35mm | S | S | N | N | N | S | N | N | N |
CF63 114mm / 63mm | O | S | S | N | N | O | S | N | N |
CF100 152mm / 100mm | O | O | O | S | N | O | O | S | N |
CF150 203mm / 150mm | O | O | O | O | S | O | O | O | S |
CF200 254mm / 200mm | O | O | O | O | O | O | O | O | O |
CF250 304mm / 250mm | O | O | O | O | O | O | O | O | O |
S – Standard Configuration | O – Optional Configuration | N- Not Available | |||||||||
