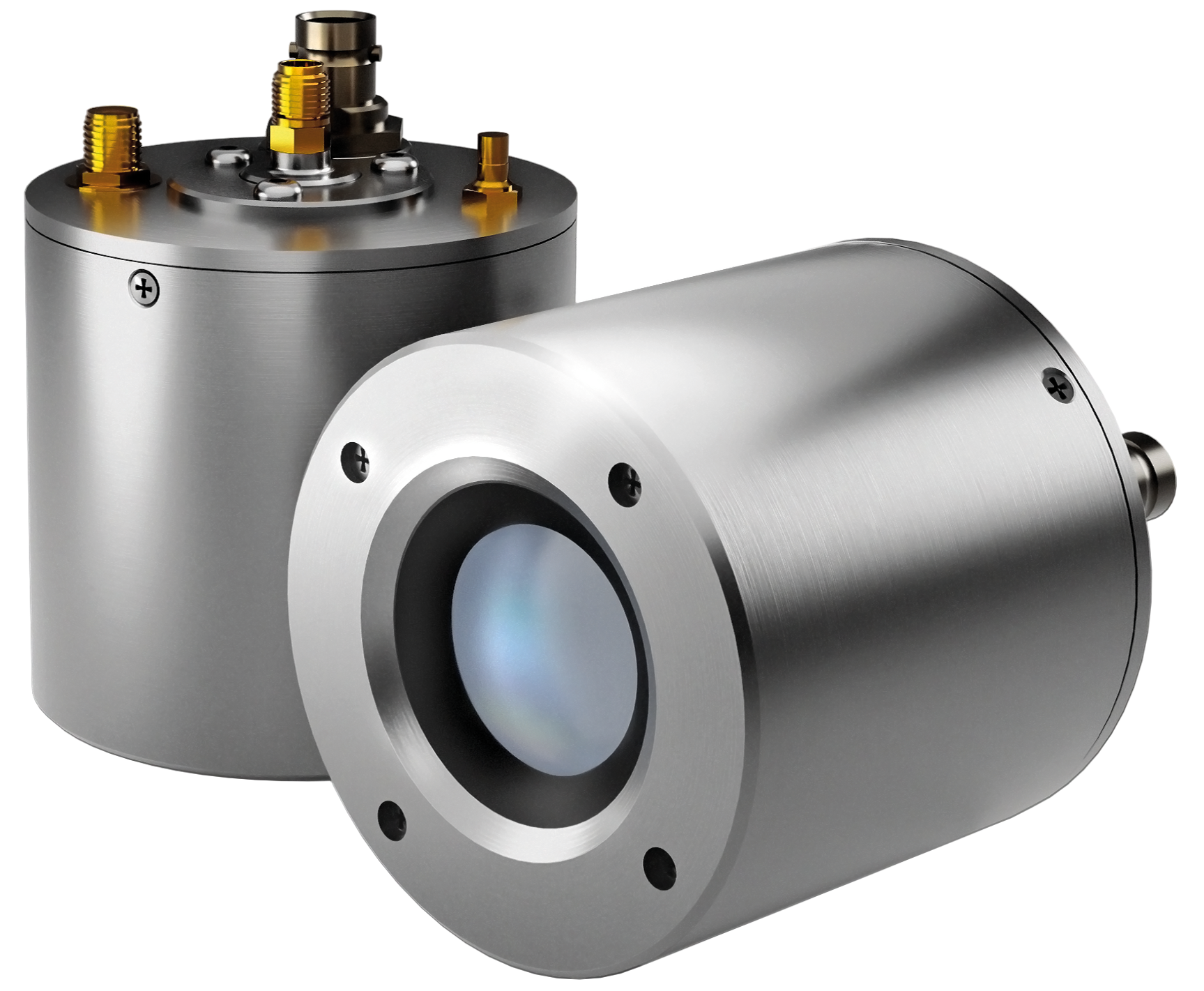

Features
Optimised anode assembly
provides fastest response of any PMT, down to 60 ps risetime
Range of active diameters available
10 mm, 25 mm and 40 mm
Three gain configurations
cover a wide range of light levels
Fast Gating to 2 ns
allows rejection of unwanted background
Pulse linearity to 1 A
for accurate analysis of wide dynamic range events
Single Photon Transit Time Spread to < 20 ps
powers the most accurate Time Correlated Single Photon Counting available
Integral voltage divider and gate module
for ease of use
Applications
- Inertial Confinement Fusion Diagnostics
- Analysis of fast optical pulses
- Time correlated single photon counting
- LiDAR
- Particle & Nuclear physics
- Ultrafast laser diagnostics
- Cherenkov light detection
- Fluorescence lifetime imaging
Range
The table below outlines the Part Number format for our standard product range. To talk further about these products, or the custom design of an image intensifier for your application, then please Contact us.
Example: MCP125/Q/S20/P43/IFO
is a 25mm diameter single MCP image intensifier, with a
fused silica input window, S20 photocathode, and P43
phosphor, on a fibre optic output window
TYPE | MCP | Size | Input | Cathode | Gating |
PMT | 1 | 10 | CsI | ||
2 | 25 | Q (fused silica) | SB | M (Mesh) | |
3 | 40 | M (MgF2) | BI | TCU | |
S20B | |||||
S20 | |||||
S25 |
Specifications
Active Diameter (mm) | Max Gain | Pulse Risetime (ps) | Pulse FWHM (ps) | Gating Speed (ns) | |
PMT110 | 10 | >10 4 | 65 | 110 | < 3 |
PMT210 | 10 | >10 6 | 85 | 150 | < 3 |
PMT310 | 10 | >10 7 | 105 | 170 | < 3 |
PMT125 | 25 | >10 4 | 115 | 700 | TBD |
PMT225 | 25 | >10 4 | 190 | 840 | TBD |
PMT325 | 25 | >10 7 | 400 | 1000 | TBD |
PMT140 | 40 | >10 4 | 150 | 450 | TBD |
PMT240 | 40 | >10 6 | 230 | 850 | TBD |
PMT340 | 40 | >10 7 | 320 | 920 | TBD |

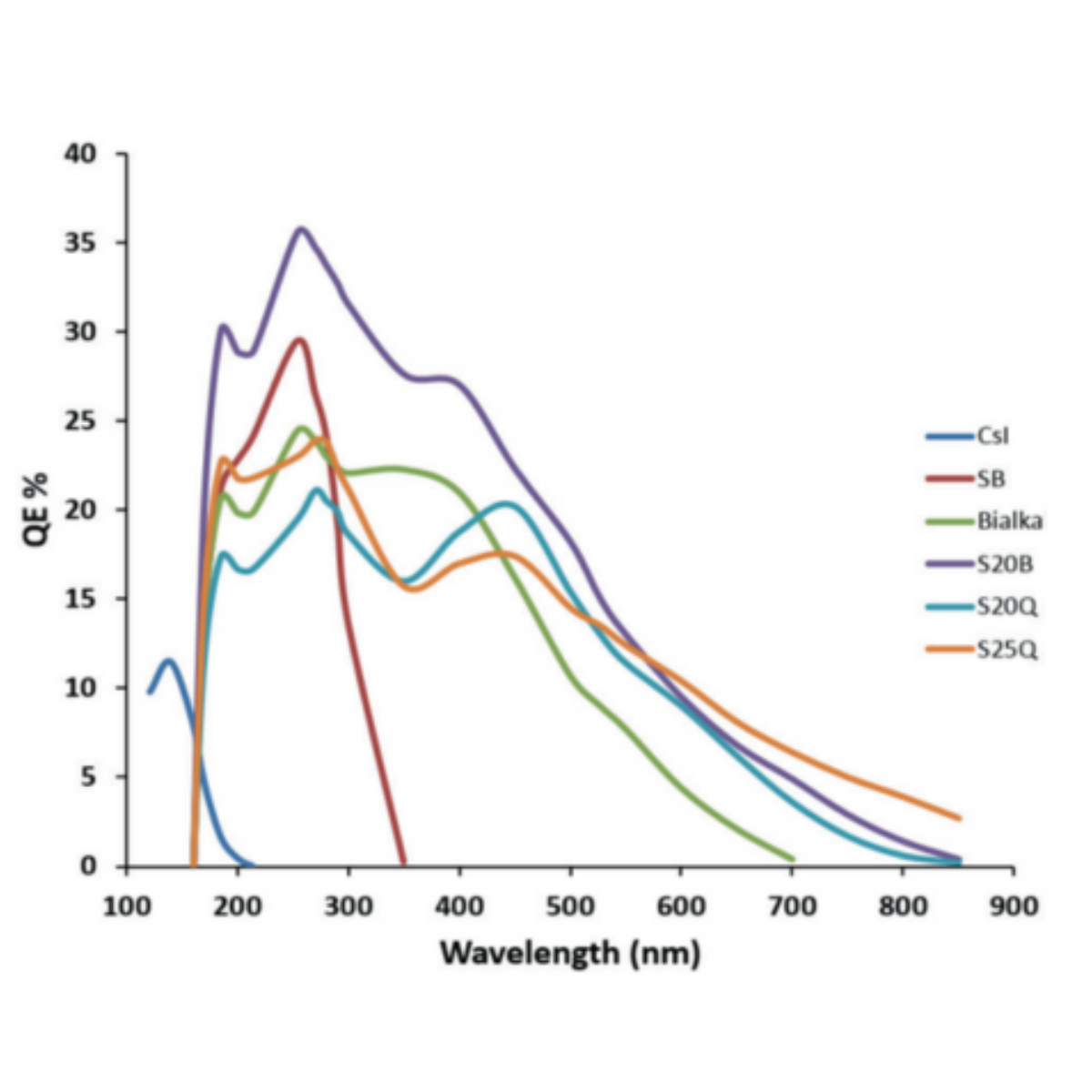

QE Curves

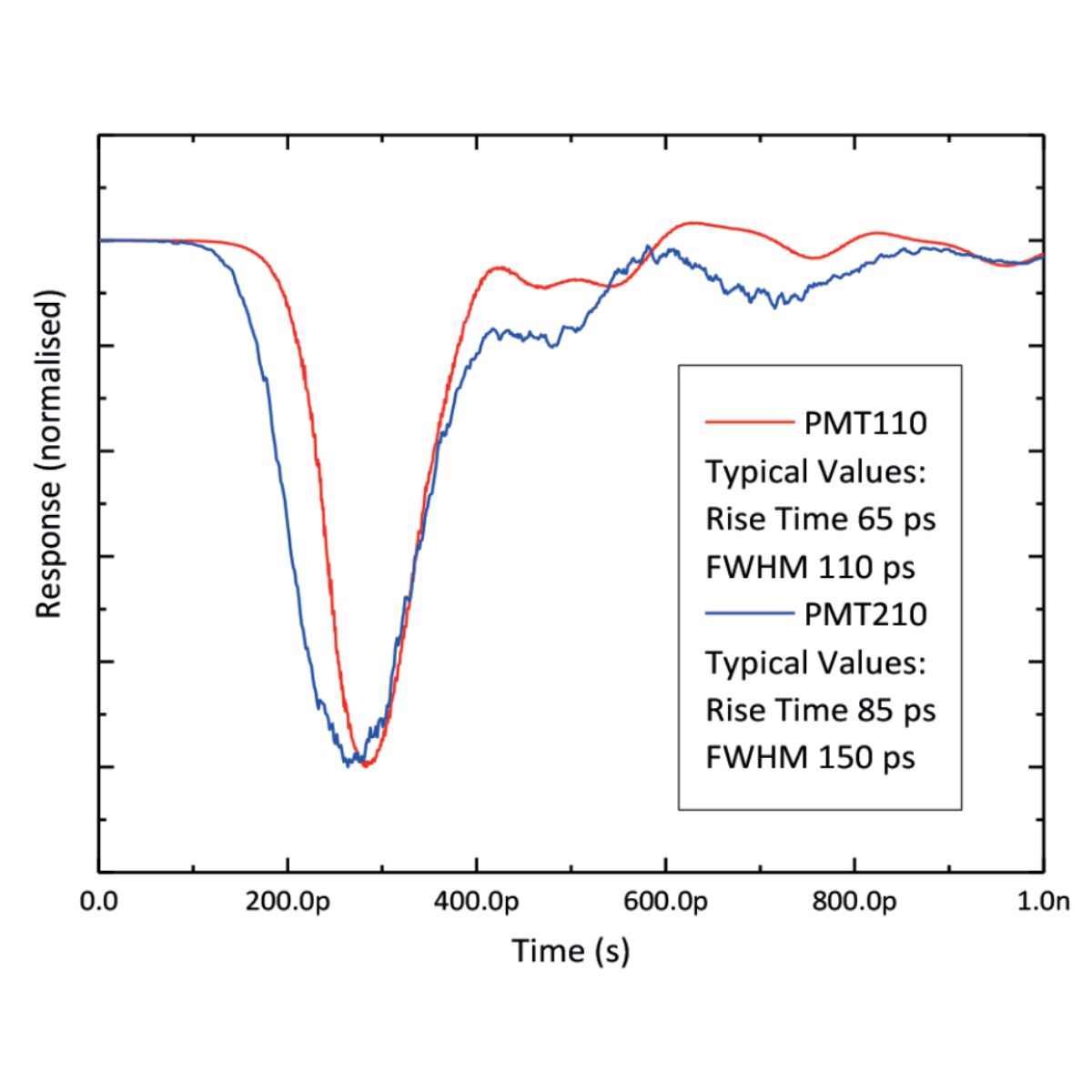

Example of fasted pulse response –PMT110
Documentation
Download Datasheet
